Disassembling Electrohydraulic Control Unit: Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cover
  2. Cover
  3. Screw (6x80)
  4. Screw (6x55)
  5. Leaf springs
  6. Solenoid valve, 2-3 gearshift
  7. Control solenoid valve, converter jumper
  8. Solenoid valve, 1-2 and 4-5 gearshift
  9. Solenoid valve, 3-4 gearshift
  10. Control solenoid valve, shifting pressure
  11. Control solenoid valve, modulating pressure
  12. Electrical control unit
  13. Hydraulic control unit

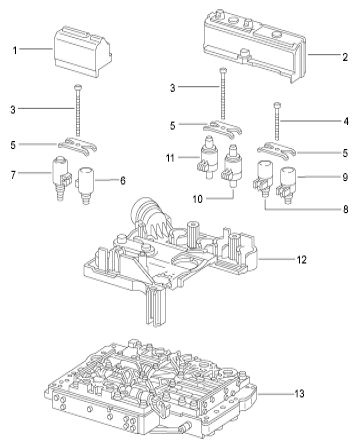

    Fig 1: Identifying Electrohydraulic Control Unit Components
    G09825175Courtesy of PORSCHE CARS NORTH AMERICA, INC.
