Removing The Electrohydraulic Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

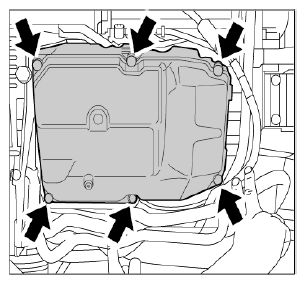

Loosen screws crosswise and remove ATF pan.

Fig 1: Locating ATF Pan Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

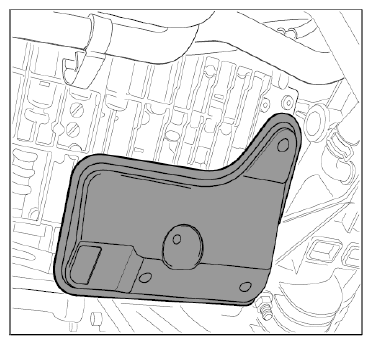

Disconnect ATF filter downwards from electromagnetic control unit.

Fig 2: Identifying ATF Filter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

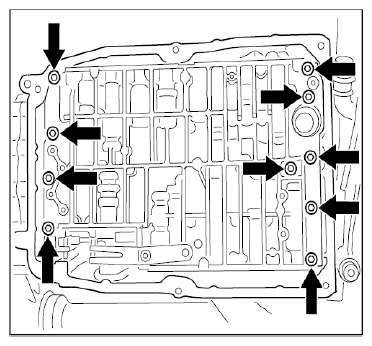

Unscrew fastening screws -arrow- for electromagnetic control unit and remove control unit.

Fig 3: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
