Installing The Electrohydraulic Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The selector lever must be in position P in order to fit the electrohydraulic control unit.

Insert electrohydraulic control unit into the transmission from below. The selector valve must engage in the driver of the notched plate.

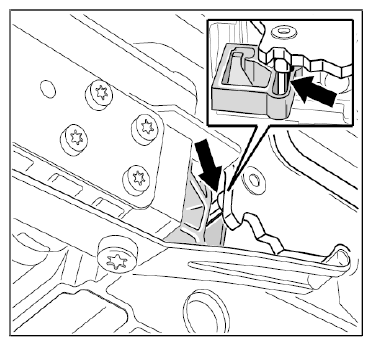

Fig 1: Locating Selector Valve And Driver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws and tighten hand tight.

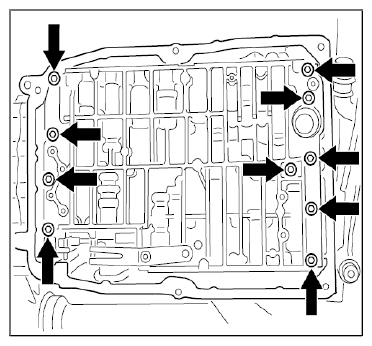

Fig 2: Locating Control Unit Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tighten fastening screws.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Electrohydraulic control unit	-	Tightening torque	8 Nm (6.0 ftlb.)	-	-

Thinly coat gasket on the suction collar of the ATF filter with Vaseline and insert filter from below into electromagnetic control unit.

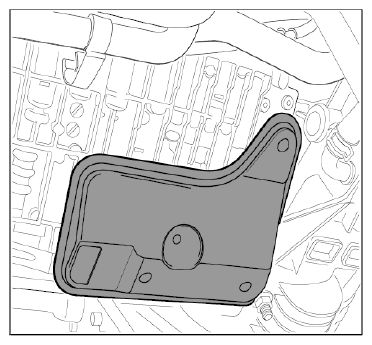

Fig 3: Identifying ATF Filter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean ATF pan and place on transmission with new seal.
Screw in screws and tighten them crosswise. → Tightening torque: 8 Nm (6.0 ftlb.)
