Assembly Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

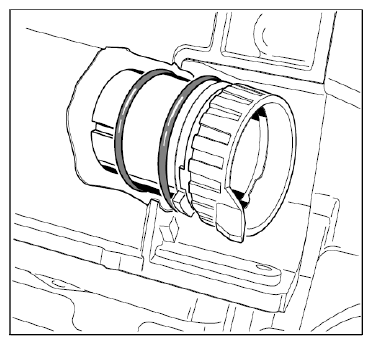

Check sealing rings at the connector for signs of damage. If sealing rings are damaged, replace socket.

Insert socket at the correct position and tighten fastening screw.

Fig 1: Identifying Sealing Rings

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Socket	-	Tightening torque	2.5 Nm (2.0 ftlb.)	-	-

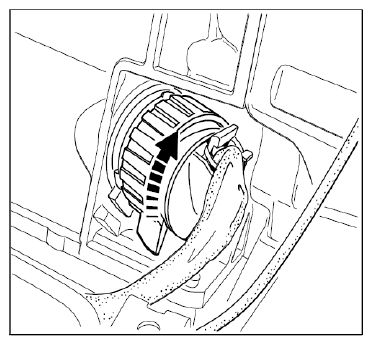

Insert electrical plug into socket and lock by turning clockwise.

Fig 2: Inserting Electrical Plug Into Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

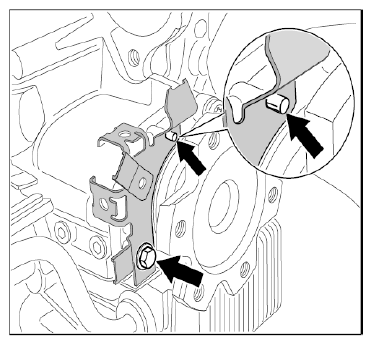

Fit the holder for the coolant hoses.

Fig 3: Locating Coolant Lines Holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Holder for coolant hoses	-	tightening torque	10 Nm (7.5 ftlb.)	-	-

Fit left drive shaft on transmission side.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Drive shaft	-	tightening torque	81 Nm (60 ftlb.)	-	-

Push vacuum line onto switch-over valve.

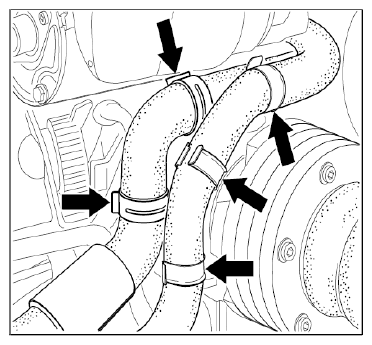

Engage the coolant hoses in the area of the left drive shaft.

Fig 4: Locating Coolant Lines Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage cable and vacuum line in the retaining clips of the ATF pan.

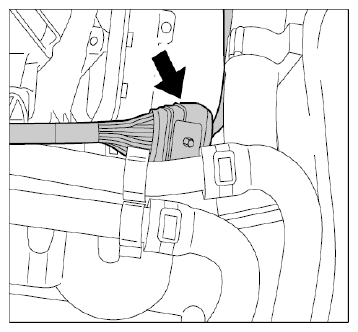

Fit electric plugs.

Fig 5: Locating Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

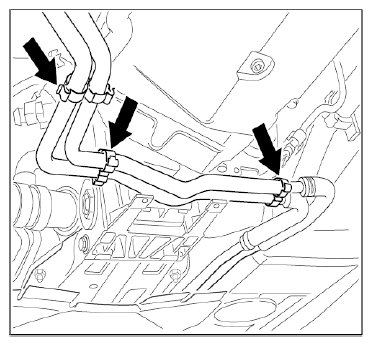

Engage the coolant lines at the fastening points.

Fig 6: Locating Coolant Lines Holder Fastening Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

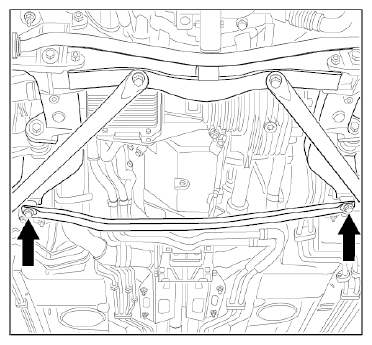

Install cross member.

Fig 7: Locating Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
