Removing Lines For ATF Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Remove lines for ATF cooler.

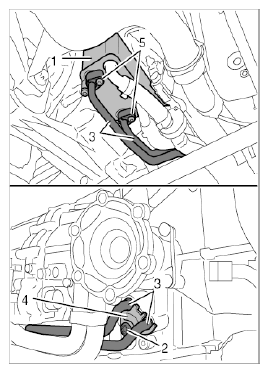

Fig 1: Identifying ATF Cooler Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Place oil collection pan underneath.
2. Loosen ATF lines -3- at the ATF cooler -1- .
  Remove screws -5- .
3. Remove ATF lines -3- on the Porsche Doppelkupplung (PDK).
  Unscrew screw -2- for clamping holder -4- and remove clamping holder -4- .
4. Remove ATF lines -3- .
  Pull off and remove ATF lines -3- at the ATF cooler -1- .
