Installing Lines For ATF Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

Aluminum screws must always be replaced. They must never be re-used.

Install lines for ATF cooler.

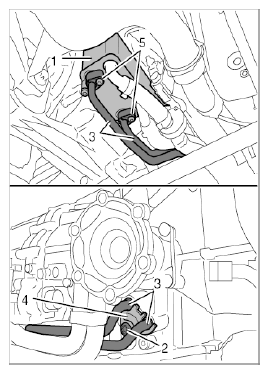

Fig 1: Identifying ATF Cooler Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Replace all O-rings.
2. Install ATF lines -3- .
  Insert ATF lines -3- and fit them on the ATF cooler -1- . Then screw in and tighten screws -5- .
3. Fit ATF lines -3- on the Porsche Doppelkupplung (PDK).
  Fit clamping holder -4- and screw in and tighten screw -2- for clamping holder -4- .
4. Secure ATF lines -3- .
  Tighten M6 screws -5- and M8 screw -2- .

  Information
  - The aluminum screws for the differential housing cover must be replaced.
  - The aluminum screws for the Porsche Doppelkupplung (PDK) must be tightened using the yield-point-controlled tightening method.
  - Special tool electronic torque wrench 9768 is used for this.
  - To ensure that the screws are tightened uniformly, the corresponding tightening setting "light, medium or hard" must always be used.
    Tighten M8 screw at "medium" setting

    → Tightening torque: 6 Nm (4.5 ftlb.)

    Tighten M6 screw at "medium" setting

    → Tightening torque: 2.4 Nm (2 ftlb.)
