Removing ATF Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect coolant hoses on ATF cooler using hose clamps 3094.

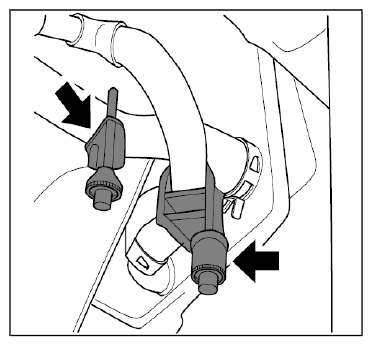

Fig 1: Locating ATF Cooler Hose Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Loosen hose clamps, pull off coolant hoses from ATF cooler and plug the adapters.

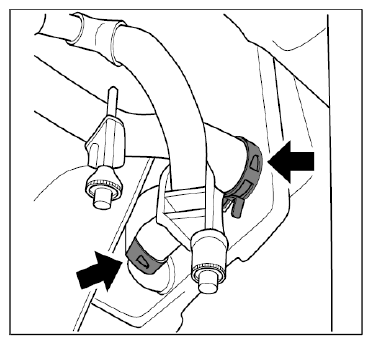

Fig 2: Locating Coolant Hoses Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -arrows- between ATF cooler and port plate.

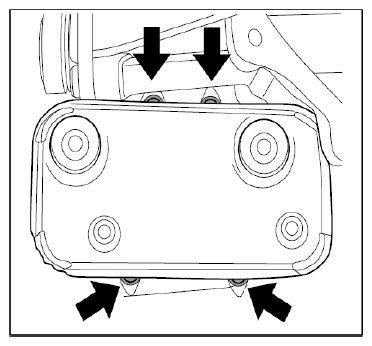

Fig 3: Locating ATF Cooler Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Pull ATF cooler to the rear away from the port plate.
