Installing ATF Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Always replace O-rings -arrows-  on the ATF cooler.

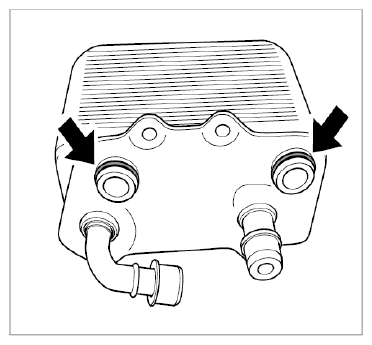

    Fig 1: Locating ATF Cooler O-Rings
    G09825126Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position ATF cooler on port plate from behind.
  3. Screw in and tighten fastening screws -arrows-  between ATF cooler and port plate.

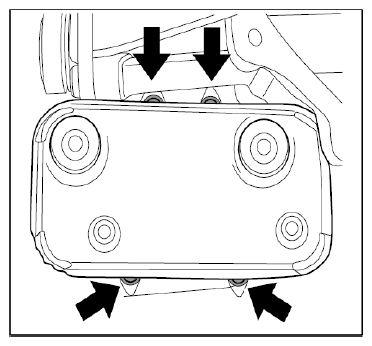

    Fig 2: Locating ATF Cooler Screws
    G09825127Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    ATF cooler - Tightening torque 10 Nm (ftlb.) (7.5) - -
  4. Remove plugs, connect coolant hoses to flanges and fit hose clamps.
  5. Remove hose clamp 3094.
