Replacing Connectors For Transmission Wire Harness

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Note the arrangement of the cables for the connector housings to be replaced and do not get the cables mixed up.

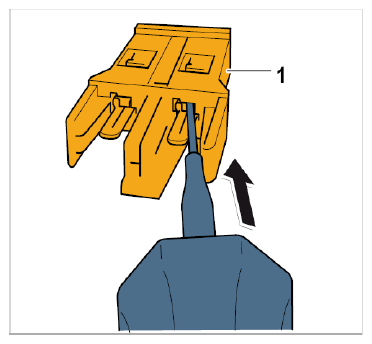

Hold the connector housing with the connector tab -1- up and press the unlocking tool press-out tool set Nr.155 Pos.1, tool no. 93005 (Mibostahl set) into the openings above and below the contact -arrow- until the resistance of the locking lug on the contact is clearly overcome. Leave the tool in the connector housing.

Fig 1: Releasing Transmission Wire Harness Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

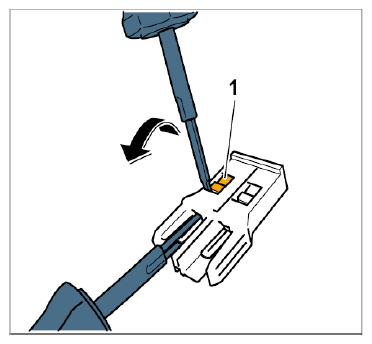

Position the unlocking tool press-out tool set Nr.155 Pos.1, tool no. 95511 (Mibostahl set) at the upper connector tab -1- and break this off in an upward direction using the tool. -arrow-

Fig 2: Positioning Unlocking Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

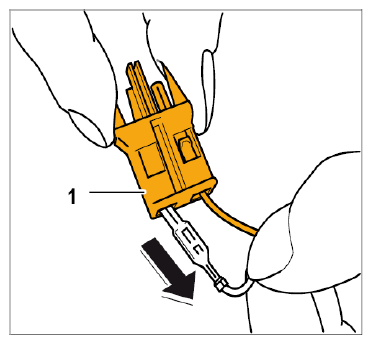

Pull the cable back out of the connector housing -1- at the sleeve.

Fig 3: Pulling Out Connector Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

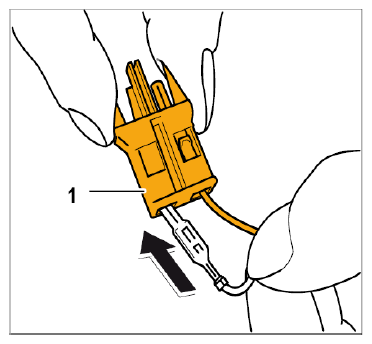

Press the cable into the new connector housing -1- from behind until the contact engages securely in the housing. Make sure that the cables are arranged correctly in the connector housing.

Fig 4: Pressing In Connector Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
