Removing Switch For Memory Seat Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

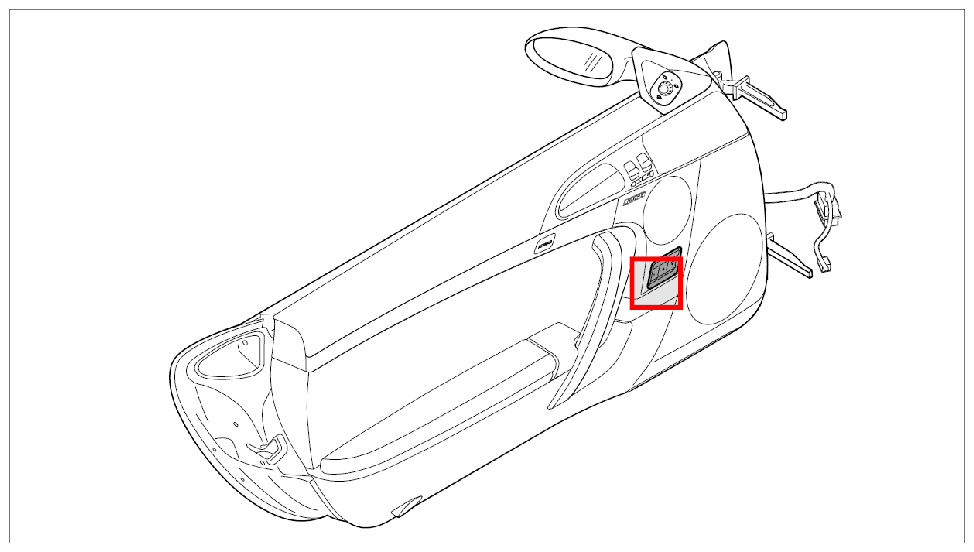

Fig 1: Identifying Installation Position Of Switch For Memory Seat Adjustment
G09829811Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Switch off ignition and remove ignition key.
  2. Release switch for memory seat adjustment -1-  at the four locking tabs -arrows a-  . Swivel switch for memory seat adjustment -1-  out of the door trim panel at the clip -2-  in -direction of arrow-  .

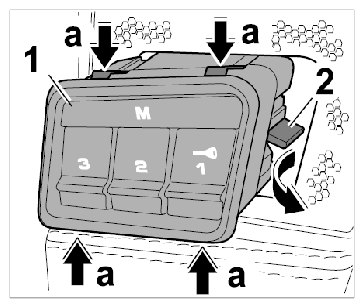

    Fig 2: Removing Switch For Memory Seat Adjustment
    G09829812Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release connector -2-  and remove it -arrow a-  . Remove switch for memory seat adjustment -1-  .

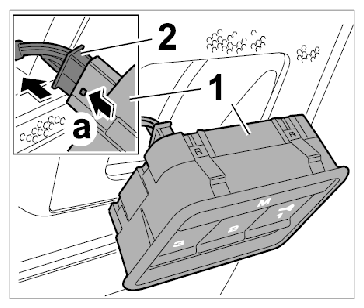

    Fig 3: Pulling Off Connector On Switch For Memory Seat Adjustment
    G09829813Courtesy of PORSCHE CARS NORTH AMERICA, INC.
