Installing Switch For Memory Seat Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place switch for memory seat adjustment -1-  into position and attach connector -2-  until it engages correctly.

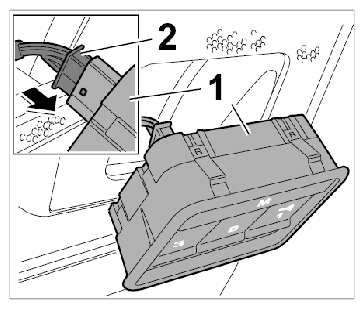

    Fig 1: Attaching Connector On Switch For Memory Seat Adjustment
    G09829814Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Guide switch for memory seat adjustment -1-  with the clip -2-  into position behind the door trim panel and press down until the locking tabs -arrows-  engage correctly.

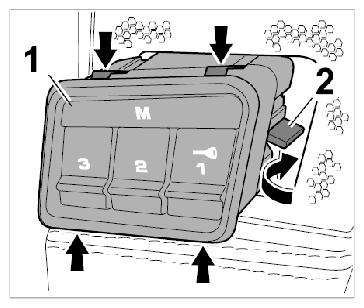

    Fig 2: Installing Switch For Memory Seat Adjustment
    G09829815Courtesy of PORSCHE CARS NORTH AMERICA, INC.
