Removing Loop For Backrest Release

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

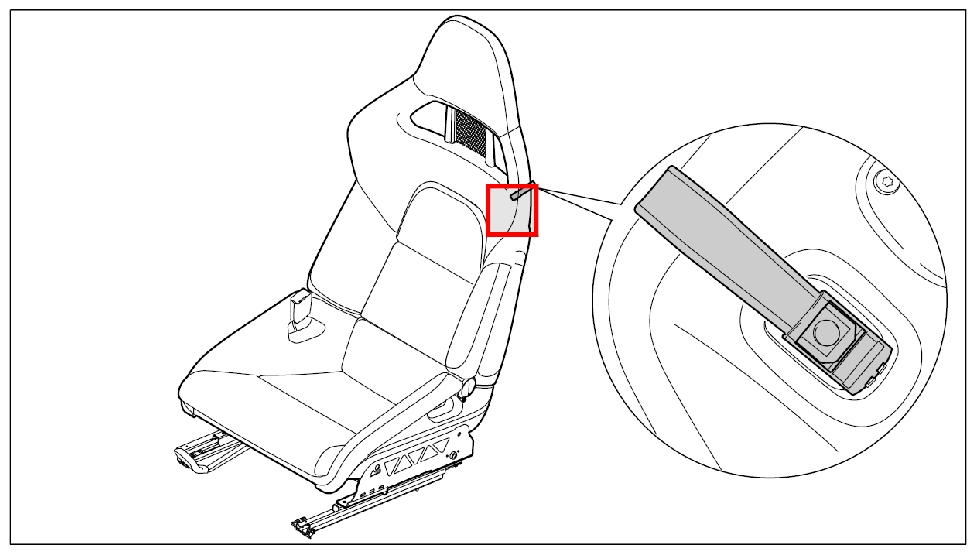

Fig 1: Identifying Installation Position Of Loop For Backrest Release (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull off the cover -1- at the Velcro fasteners -2- and -3- (-arrows- ).

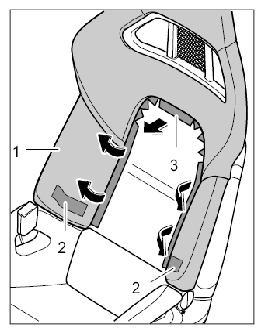

Fig 2: Loosening Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully detach foam part of backrest -1- at the bonding points -2- , starting at the bottom and remove it -arrows- .

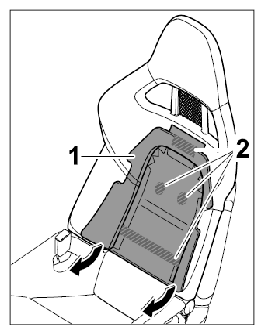

Fig 3: Removing Foam Part Of Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a screwdriver between the bowden cable -1- and lower bracket -2- and press out the bowden cable -arrows A- .

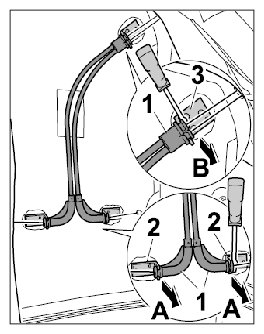

Fig 4: Disengaging Bowden Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a screwdriver between the bowden cable -1- and upper brackets -3- and press out the bowden cable -arrow B- .
Pull loop -1- and bowden cable -2- out of the collar -3- (-arrow A- ).

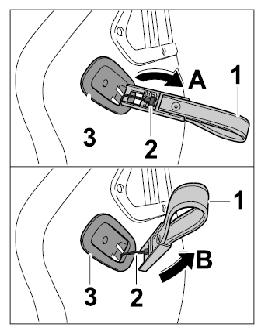

Fig 5: Removing Loop For Backrest Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swivel loop -1- in -direction of arrow B- and disengage bowden cable -2- .
