Installing Loop For Backrest Release

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Pull bowden cable out through the backrest shell.
Information

When engaging the bowden cable, make sure that the cables are not twisted.

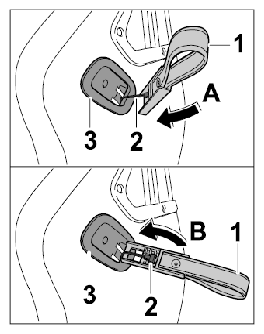

Engage bowden cable -2- at the loop -1- (-arrow A- ).

Fig 1: Installing Loop For Backrest Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide loop -1- into the collar -3- (-arrow B- ).

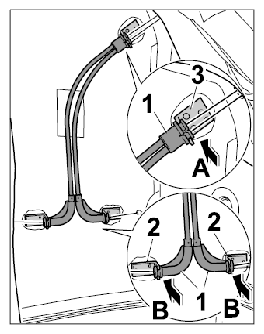

Press bowden cable -1- into the upper bracket -3- (-arrow A- ).

Fig 2: Engaging Bowden Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press bowden cable -1- into the lower brackets -2- (-arrows B- ).
Check backrest release by pulling the loop.
Check bonding points -2- on the foam part -1- and apply new adhesive if necessary.

Fig 3: Installing Foam Part Of Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

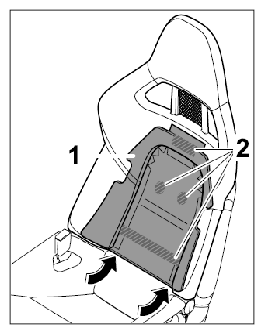

Position foam part -1- (-arrows- ) and press it on at the bonding points -2- .

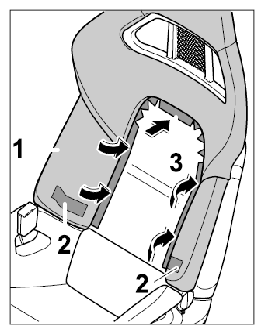

Align cover -1- with the side bolsters.

Fig 4: Loosening Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure the Velcro fasteners join cleanly.
Press on Velcro fasteners -2- and -3- (-arrows- ).
