Removing Cover For Outer Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Installation Position Of Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screw -1- laterally out of the cover -2- .

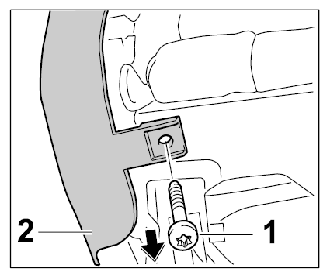

Fig 2: Unscrewing Fastening Screw Laterally
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew lower fastening screw -1- out of the cover -2- .

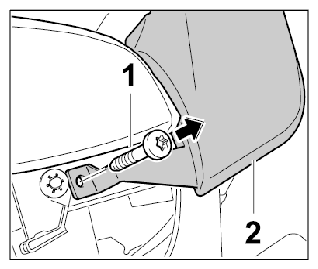

Fig 3: Unscrewing Lower Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cover -1- at the front -inset A- and remove by pulling backwards in direction of arrow -inset B- .

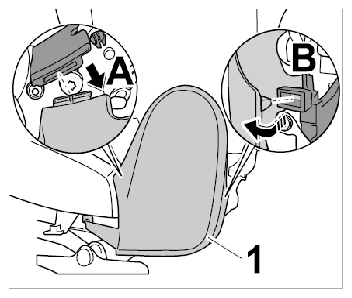

Fig 4: Remove Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
