Removing Cover For Inner Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening nuts -1-  and loosen fastening screws -2-  and seat frame slightly.

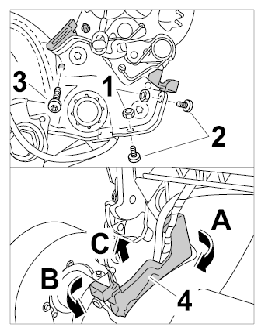

    Fig 1: Removing Cover For Inner Backrest
    G09829658Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -3-  .
  3. Unclip cover -4-  at the front -arrow A-  , disengage carefully at the back -arrow B-  and remove in -direction of arrow C-  .
