Installing Cover For Outer Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

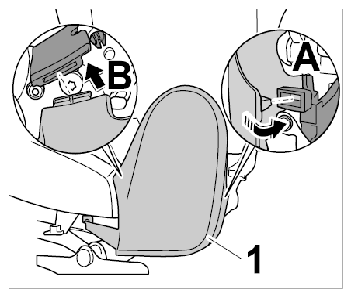

Insert cover -1- at the back in direction of arrow -inset A- and press into position at the front -inset B- .

Fig 1: Installing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

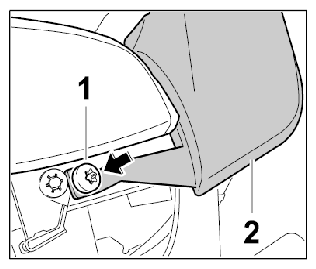

Screw down the cover -2- from below with the fastening screw -1- . → Tightening torque: 2.7 Nm (1.8 ftlb.)

Fig 2: Screwing Down Lower Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

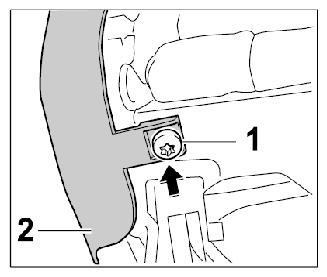

Screw down the cover -2- laterally with the fastening screw -1- . → Tightening torque: 2.7 Nm (1.8 ftlb.)

Fig 3: Locating Cover Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
