Installing Cover For Inner Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage cover -4-  at the back -arrow A-  , at the same time press downwards -arrow B-  and then clip in at the front -arrow C-  .

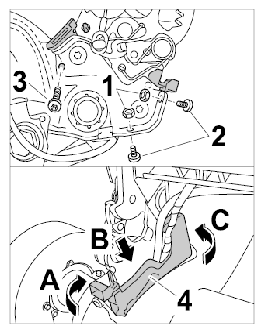

    Fig 1: Installing Cover For Inner Backrest
    G09829659Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure cover -4-  with the fastening screw -3-  .
  3. Screw in fastening screws -2-  and secure seat frame with the fastening nuts -1-  .
