Removing Bowden Cable For Backrest Release

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

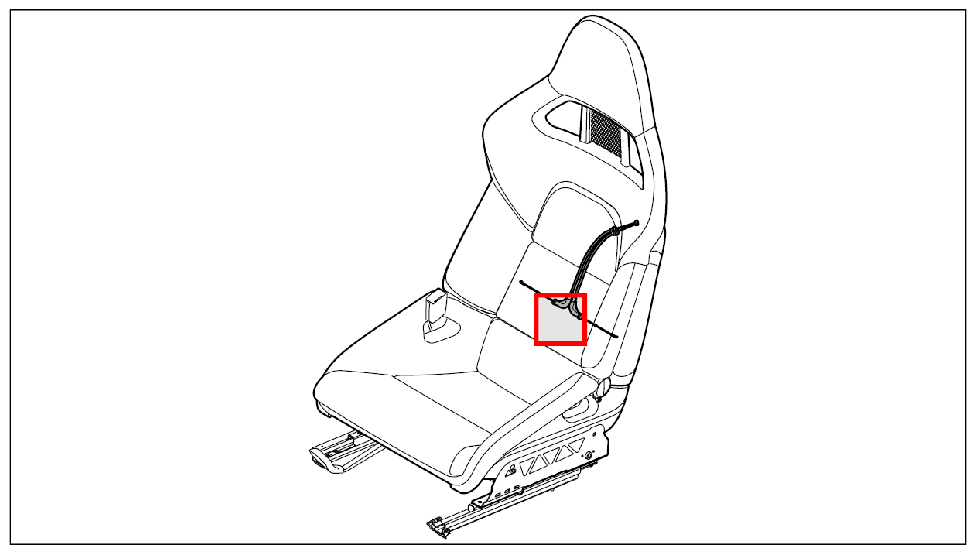

Fig 1: Identifying Installation Position Of Bowden Cable For Backrest Release (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengage bowden cable at the left and right on the upper part of the lock.

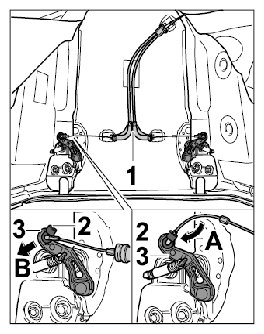

Fig 2: Identifying Bowden Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unclip bowden cable -1- from the locking clip -2- and swivel it 90° -arrow A- .
2. 1.2. Remove bowden cable -1- from the actuating lever -3- (-arrow B- ).
