Installing Bowden Cable For Backrest Release

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Check locking clip -1- and replace it if necessary.

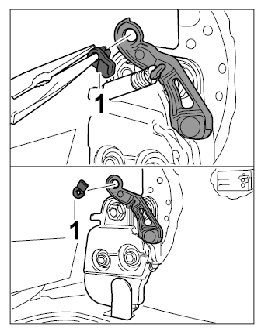

Fig 1: Checking Locking Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage bowden cable at the left and right on the upper part of the lock.

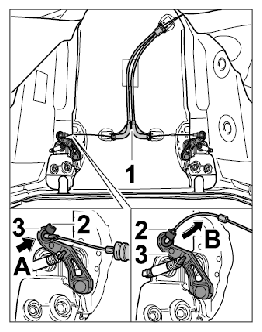

Fig 2: Installing Bowden Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Guide bowden cable -1- into the locking clip -2- on the actuating lever -3- (-arrow A- ).
2. 2.2. Swivel the bowden cable -1- 90° and engage it in the locking clip -2- (-arrow B- ).
