Removing Cushion Carrier For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

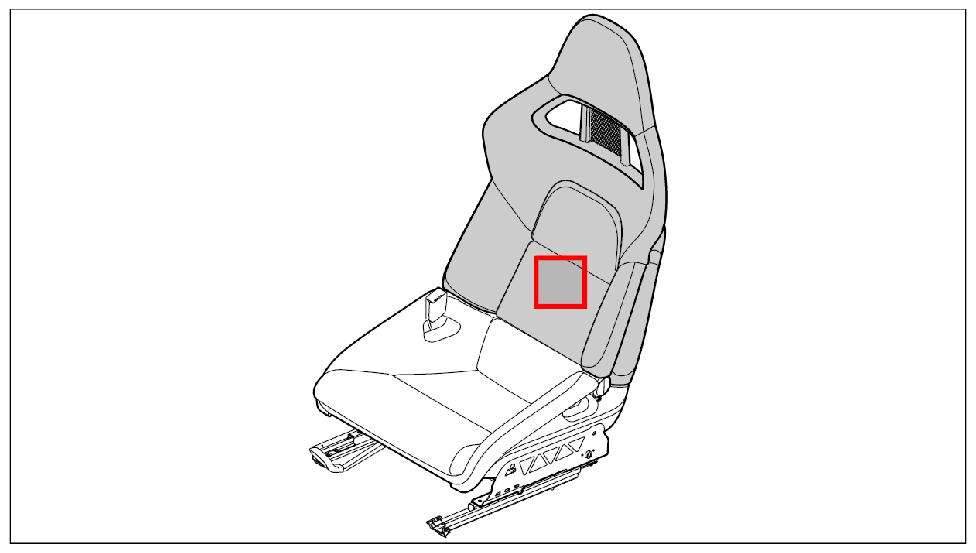

Fig 1: Identifying Installation Position Of Front Backrest Shell (Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect airbag wire harness from the seat shell at the tie-wraps -1- .

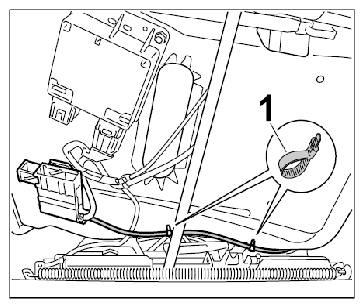

Fig 2: Disconnecting Airbag Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn airbag connector socket 90° to the left -arrow A- and remove it from the seat shell -arrow B- .

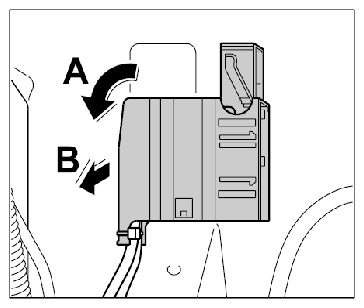

Fig 3: Removing Airbag Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect airbag connector socket.

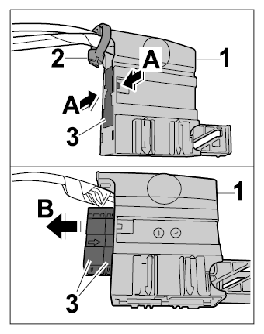

Fig 4: Disconnecting Airbag Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Remove tie-wrap -2- on the airbag connector socket -1- .
2. 3.2. Release the connector socket -2- (-arrows- ) and remove the two single connectors -3- (-arrow B- ).

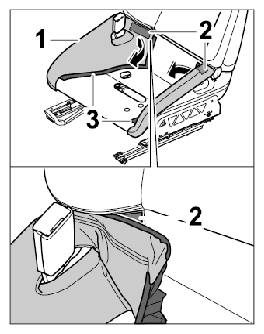

Pull off the cover -1- at the Velcro fasteners -2- and -3- (-arrows- ).

Fig 5: Loosening Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove trim on inner hinge.
1. 5.1. Unscrew fastening screw -1- .

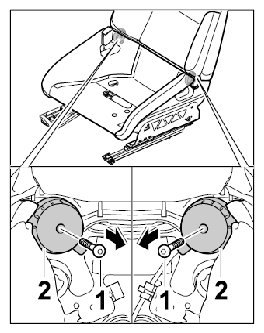

  Fig 6: Removing Trim On Inner Hinge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Remove trim on inner hinge -2- (-arrow- ).
Disconnect airbag wire harness.

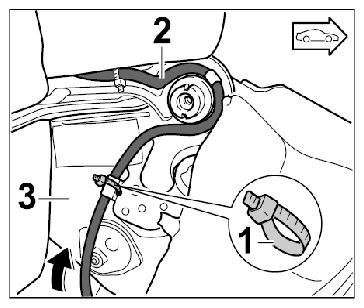

Fig 7: Disconnecting Airbag Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Remove tie-wrap -1- .
2. 6.2. Pull airbag wire harness -2- out of the seat shell -3- (-arrow- ).
Information

Two persons are needed to remove and install the backrest shell.
Remove backrest shell.

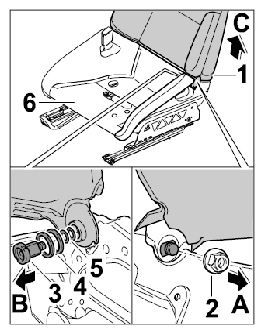

Fig 8: Removing Backrest Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Hold backrest shell -1- upright.
2. 7.2. Unscrew fastening nut -2- (-arrow A- ).
3. 7.3. Remove bearing pin -3- with plain bearing -4- and spring washer -5- (-arrow B- ).
4. 7.4. Release backrest shell -1- and lift it up out of the seat shell -6- (-arrow C- ).
