Removing Cushion Carrier For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

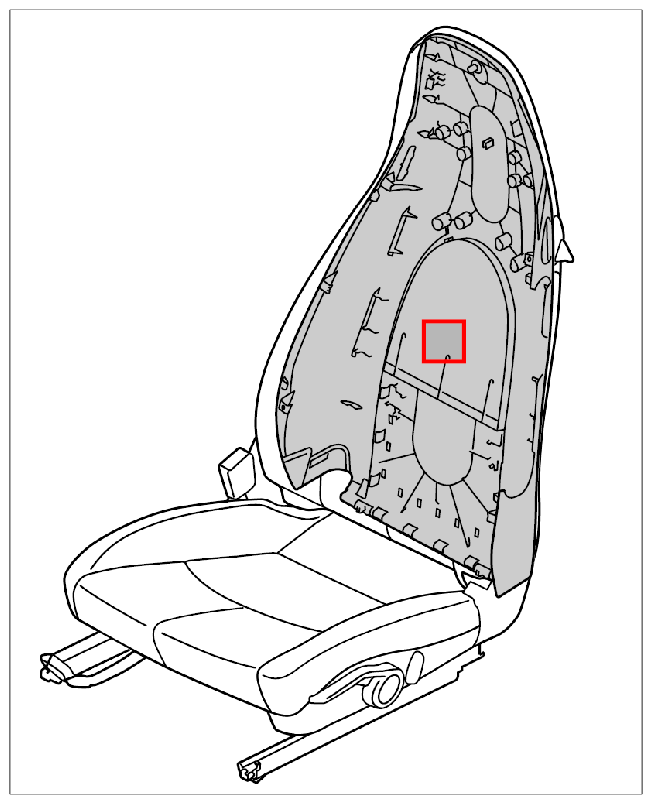

Fig 1: Identifying Installation Position Of Cushion Carrier For Front Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -1, 2- .

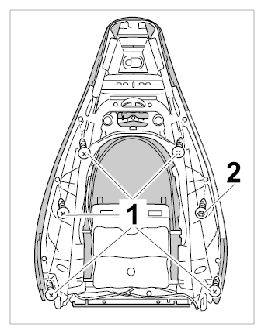

Fig 2: Identifying Cushion Carrier Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull frame for side airbag -2- out slightly and unclip locking lugs on the cushion carrier -1- using a screwdriver -arrows- .

Fig 3: Loosening Cushion Carrier At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release locking lugs at the top in direction of arrow -inset A- .

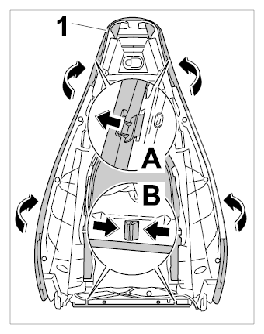

Fig 4: Removing Cushion Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press lower locking tabs together and unclip cushion carrier -1- (-inset B- ).
Press cushion carrier -1- out slightly close to the backrest release -arrows- .
