Installing Cushion Carrier For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

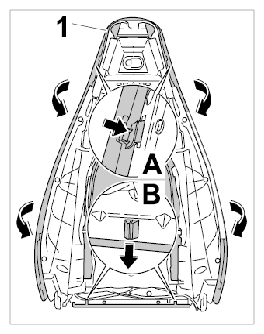

Press cushion carrier -1- outward slightly in area of backrest release and position it on the backrest frame -2- until the locking tabs engage at the top -Inset A- and bottom -Inset B- .

Fig 1: Installing Cushion Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

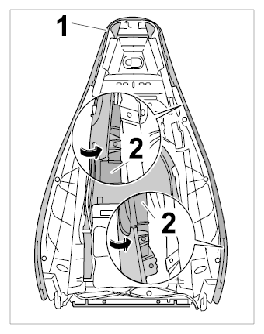

Press cushion carrier -1- at the sides into the frame for the side airbag -2- until the locking tabs engage.

Fig 2: Fastening Cushion Carrier At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

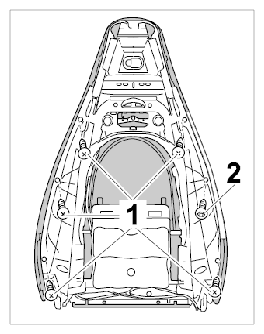

Tighten fastening screws -1, 2- .

Fig 3: Identifying Cushion Carrier Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
