Disassembling Backrest Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove fastening nuts -1- from the backrest frame -2- , check them and replace if necessary.

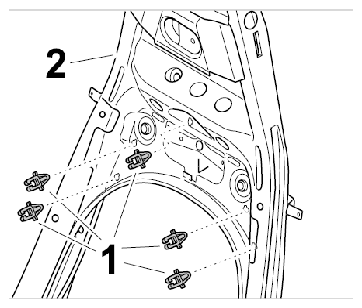

Fig 1: Identifying Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip fixing clips -1- from the backrest frame -2- , check them and replace if necessary.

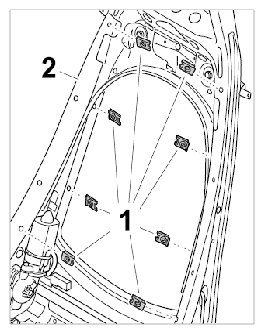

Fig 2: Identifying Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
