Removing Hose For Air Cushion Control Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tie-wraps -2-  and push hose -1-  for air cushion control valve through in a downward direction -arrow A-  .

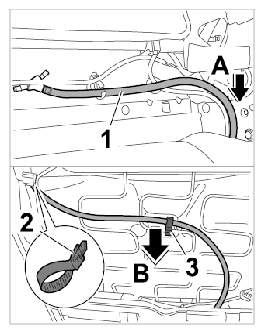

    Fig 1: Removing Hose
    G09829564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip the hose -1-  at the holder -3-  (-arrow B-  ).
  3. Pull hose -1-  off the air cushion control valve.

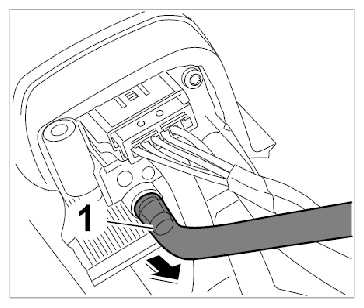

    Fig 2: Pulling Hose Off Air Cushion Control Valve
    G09829565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
