Installing Hose For Air Cushion Control Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push hose -1-  onto the air cushion control valve.

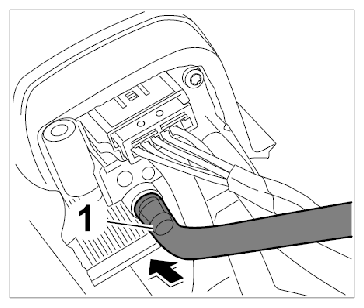

    Fig 1: Pushing Hose Onto Air Cushion Control Valve
    G09829566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lay the hose -1-  and clip it into the holder -3-  (-arrow A-  ).

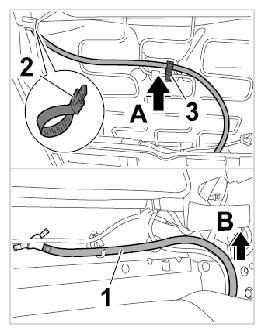

    Fig 2: Fitting Hose
    G09829567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull the hose -1-  through in an upward direction -arrow B-  and secure with a new tie-wrap -2-  .
