Removing Guide Rail: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

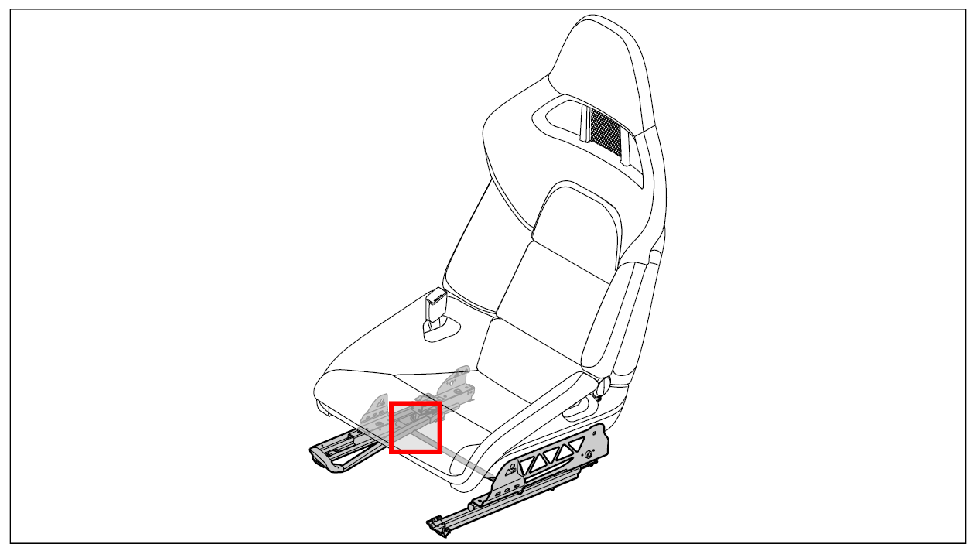

Fig 1: Identifying Installation Position Of Guide Rail (Folding Sports Bucket Seat)
G09829506Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove front inner bracket.

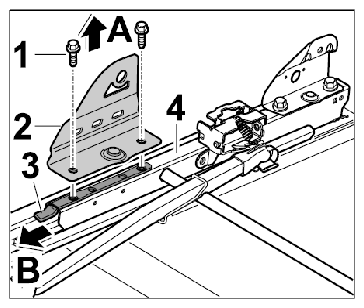

    Fig 2: Removing Front Inner Bracket
    G09829507Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unscrew fastening screws -1-  .
    2. 1.2. Take off front inner bracket -2-  (-arrow A-  ).
    3. 1.3. Remove screw-on plate -3-  from the guide rail -4-  (-arrow B-  ).
  2. Remove rear inner bracket.

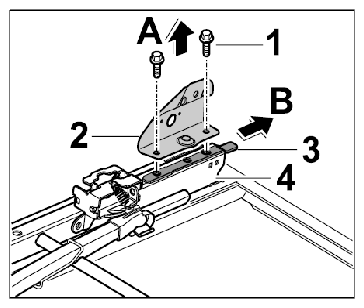

    Fig 3: Removing Rear Inner Bracket
    G09829508Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Unscrew fastening screws -1-  .
    2. 2.2. Take off rear inner bracket -2-  (-arrow A-  ).
    3. 2.3. Remove screw-on plate -3-  from the guide rail -4-  (-arrow B-  ).
  3. Remove outer bracket.

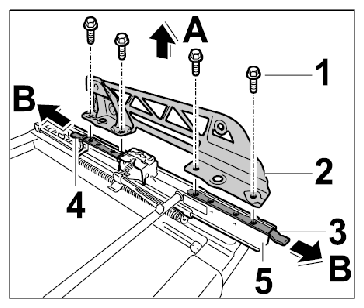

    Fig 4: Removing Outer Bracket
    G09829509Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Unscrew fastening screws -1-  .
    2. 3.2. Take off outer bracket -2-  (-arrow A-  ).
    3. 3.3. Remove screw-on plate -3-  and -4-  from the guide rail -5-  (-arrows B-  ).
  4. Disengage tension spring -1-  from the outer guide rail -2-  (-arrow-  ).

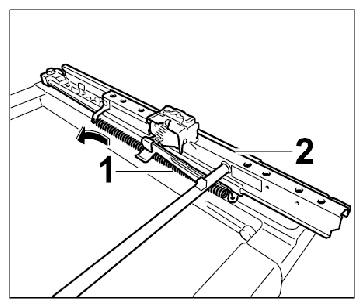

    Fig 5: Disengaging Tension Spring
    G09829510Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Disengage locking spring -1-  on the fore/aft adjustment lever -2-  (-arrow-  ).

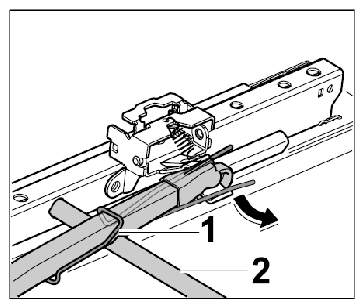

    Fig 6: Disengaging Locking Spring
    G09829511Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove fore/aft adjustment lever.

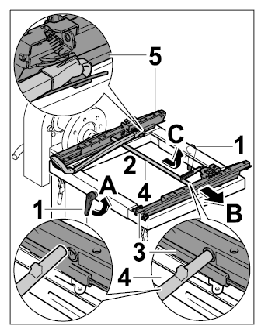

    Fig 7: Removing Fore/Aft Adjustment Lever
    G09829512Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 6.1. Open locking mechanism -1-  on the seat mounting -2-  (-arrow A-  ).
    2. 6.2. Pull seat mounting -2-  and outer guide rail -3-  out of the fore/aft adjustment lever -4-  (-arrow B-  ).
    3. 6.3. Disengage fore/aft adjustment lever -4-  from the inner guide rail -5-  (-arrow C-  ).
  7. Release inner guide rail -1-  from the seat mounting and remove it -arrow A-  .

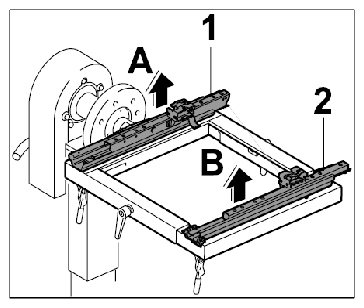

    Fig 8: Removing Guide Rails
    G09829513Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Release outer guide rail -2-  from the seat mounting and remove it -arrow B-  .
