Installing Frame For Seat Surface

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press out locking pins -1-  at the left and right using a screwdriver.

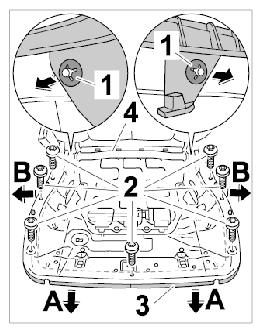

    Fig 1: Removing Frame For Seat Surface
    G09829492Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  .
  3. Pull frame for seat surface -3-  downwards -arrow A-  and take it -arrow B-  out of the seat frame -4-  .
