Removing Switch For Air Cushion

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

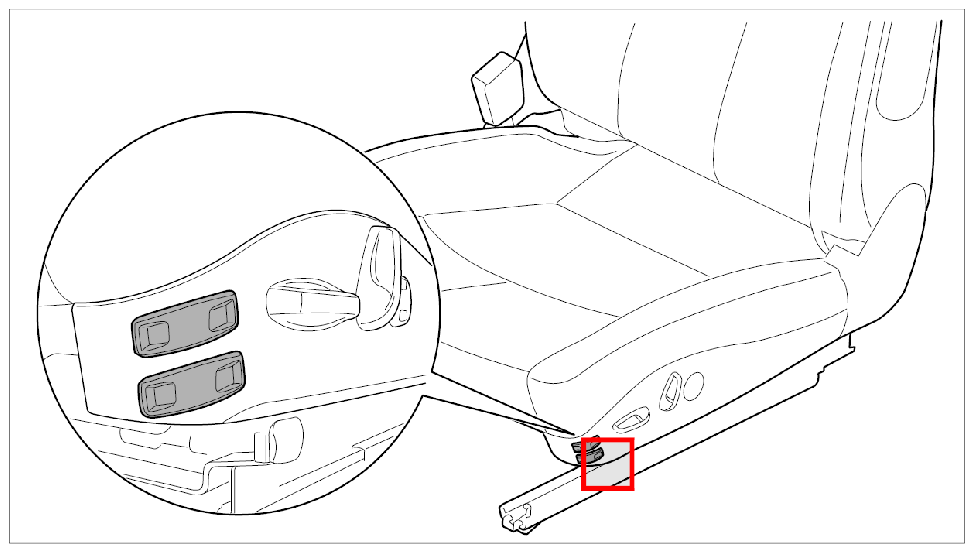

Fig 1: Identifying Installation Position Of Switch For Air Cushion
G09829473Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove the two tie-wraps -2-  on wire harness of switch for air cushion -1-  .

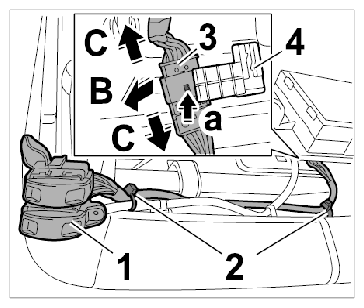

    Fig 2: Removing Switch For Air Cushion
    G09829474Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull plug connection -3-  out of holder -4-  (-arrow B-  ).
  3. Release plug connection -3-  (-arrow a-  ) and disconnect it -arrows C-  .
