Installing Switch For Air Cushion

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push plug connection -3-  together -arrows A-  until it engages securely.

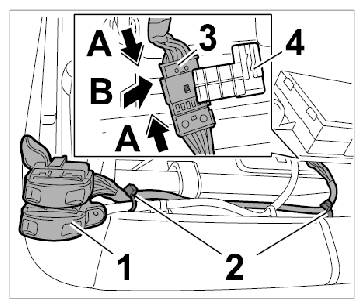

    Fig 1: Installing Switch For Air Cushion
    G09829475Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push plug connection -3-  into holder -4-  (-arrow B-  ).
  3. Lay wire harness of switch for air cushion -1-  and secure with two new tie-wraps -2-  .
