Tightening Seat Screws At The Front

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

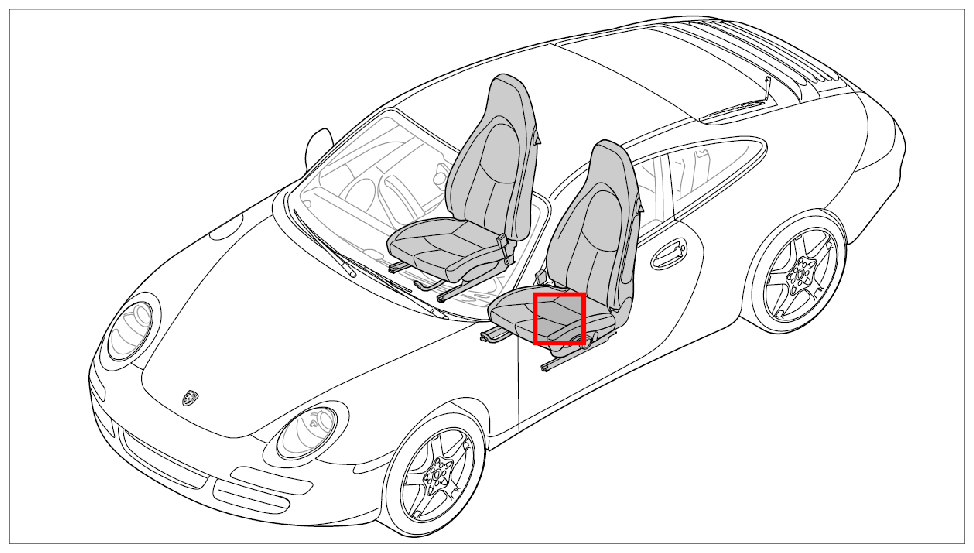

Fig 1: Overview Of Front Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Connect the battery. → Work instructions after disconnecting the battery
Move seat -1- to rear end position and screw down front fastening screws -2- to specified tightening torque → Microencapsulated: 50 Nm (37 ftlb.) .

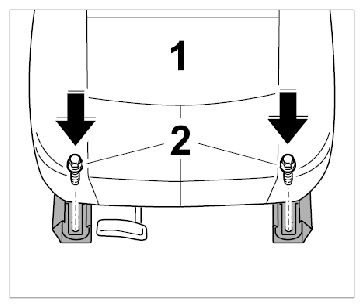

Fig 2: Locating Seat Screws At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
