Undoing Seat Screws At The Front

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move seat back as far as it will go and unscrew the front fastening screws -1-  on the seat rails at the left and right -2-  .

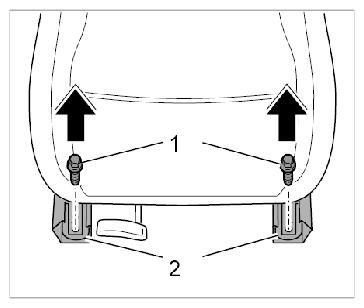

    Fig 1: Locating Seat Screws At Front
    G09829402Courtesy of PORSCHE CARS NORTH AMERICA, INC.
