Loosening Seat Belt Mount On Bucket Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

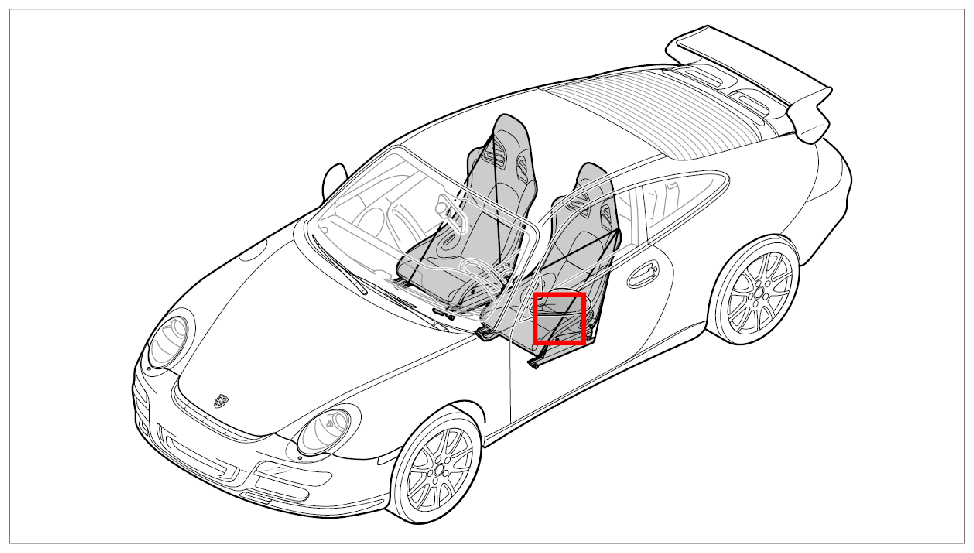

Fig 1: Overview Of Bucket Seat
G09829398Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release seat belt mount on the bucket seat.
    1. 1.1. Press out cap -1-  with a screwdriver.
    2. 1.2. Unscrew fastening screw -2-  .
    3. 1.3. Take off seat belt mount -3-  , washer -4-  , spacer sleeve -5-  , washer -6-  and threaded bush -7-  .

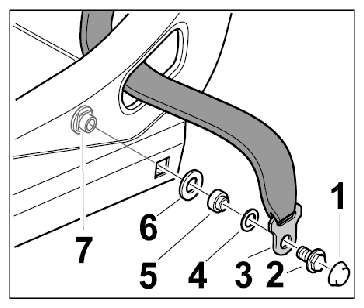

      4. Fig 2: Loosening Seat Belt Mount On Bucket Seat
      G09829399Courtesy of PORSCHE CARS NORTH AMERICA, INC.
