Tightening Seat Screws At The Rear
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.
→ Observe specified tightening torques.
→ Carry out a visual inspection of all re-used parts.
Information
Always replace the fastening screws on the front seat after customer service and reworking. The micro-self-locking or self-tapping screws must not be treated, greased or loosened and then screwed on again.

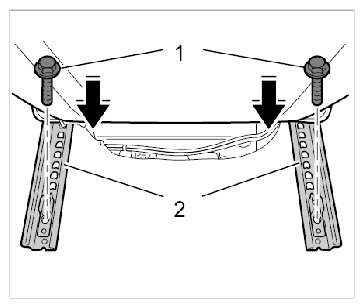

- Move seat forward as far as it will go and secure the seat rails -2- by screwing in the fastening screws -1- . → Microencapsulated: 50 Nm (37 ftlb.)
