Securing Seat Belt Mount On Bucket Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Guide belt strap from the inside to the outside.
Ensure that the belt strap can run properly.

Secure the seat belt mount to the bucket seat.
1. 1.1. Screw in fastening screw -2- , seat belt mount -3- , washer -4- , spacer sleeve -5- , and washer -6- together with the threaded bush -7- . → Tightening torque: 50 Nm (37 ftlb.)
2. 1.2. Press in cap -1- .

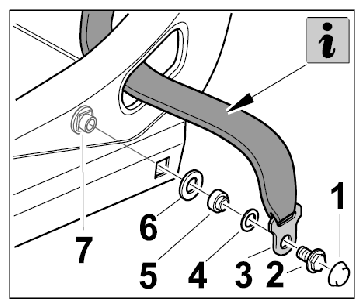

  Fig 1: Securing Seat Belt Mount To Bucket Seat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
