Removing Fire Extinguisher: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

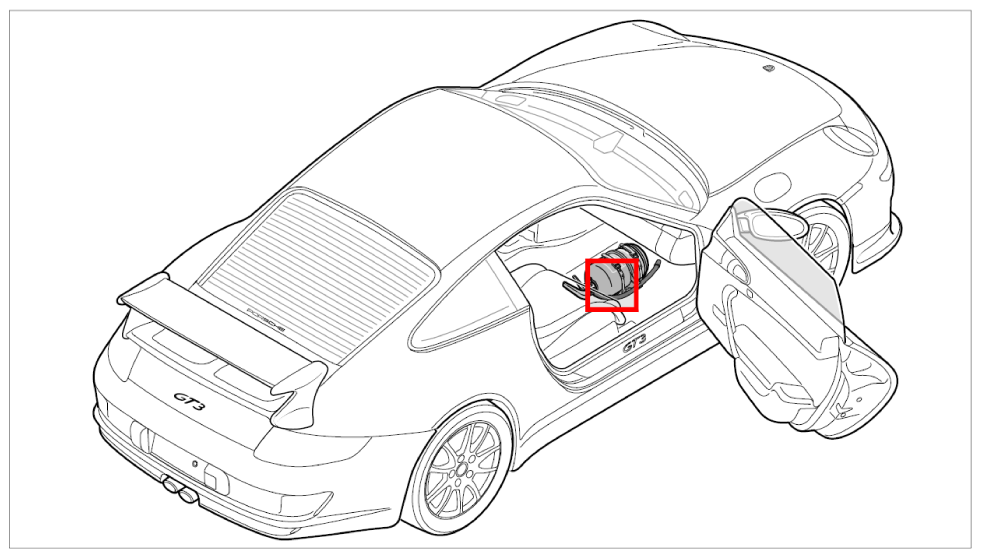

Fig 1: Identifying Fire Extinguisher Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

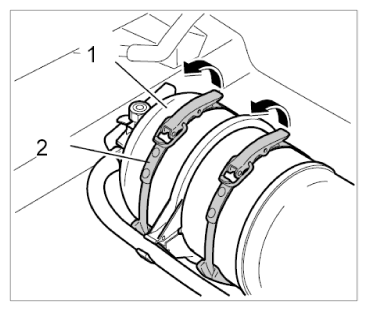

Open mounting straps -2- and remove fire extinguisher -1- from the bracket.

Fig 2: Removing Fire Extinguisher
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
