Removing Tray For Fire Extinguisher

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move front seat to the uppermost position.
  2. Unscrew fastening screws -1-  and remove tray -2-  (-arrows-  ).

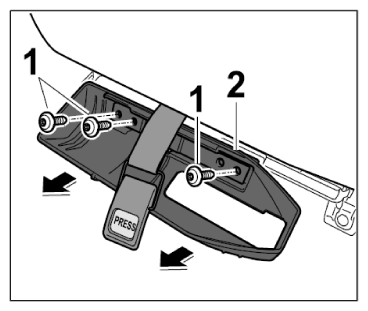

    Fig 1: Removing Tray
    G09827260Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Disassemble tray.

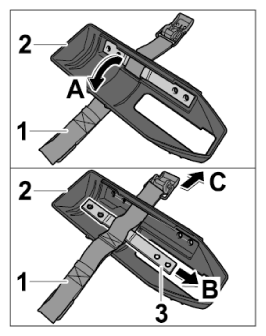

    Fig 2: Pulling Out Lower Opening Tray
    G09827261Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Pull restraining strap -1-  out of the lower opening in the tray -2-  (-arrow A-  ).
    2. 3.2. Pull tray holder -3-  out to one side -arrow B-  .
    3. 3.3. Slide restraining strap -1-  completely out of the tray -2-  (-arrow C-  ).
  4. Loosen wire harness for control panel -1-  by opening the tie-wrap -2-  on the fire extinguisher holder -3-  .

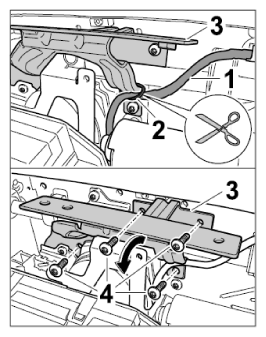

    Fig 3: Removing Holder
    G09827262Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew fastening screws -4-  and remove fire extinguisher holder -3-  (-arrow-  ).
