Removing Fire Extinguisher: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

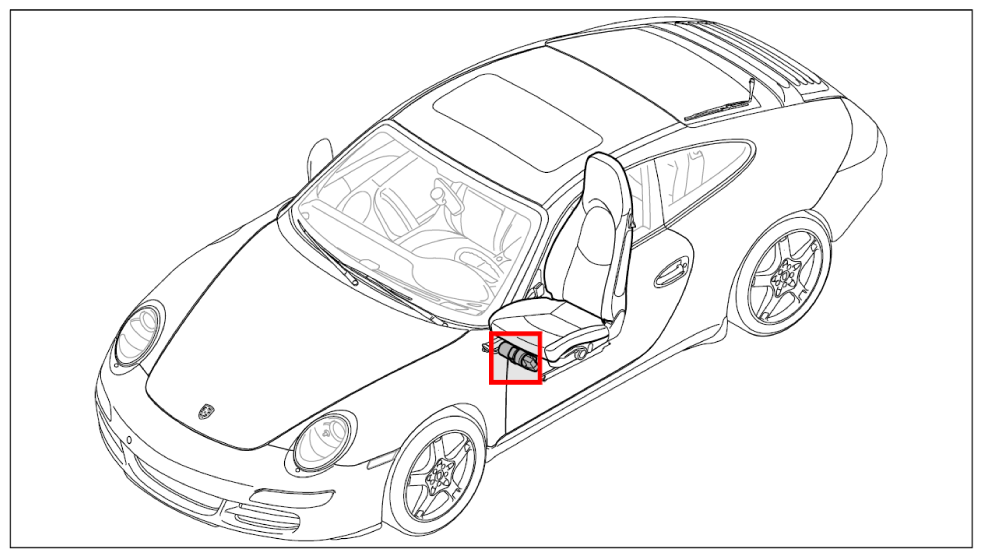

Fig 1: Identifying Fire Extinguisher Installation Position (Front Seat)
G09827258Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release restraining strap -1-  by pressing the button -arrow A-  .

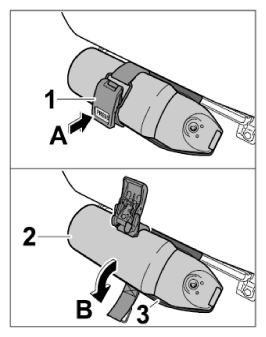

    Fig 2: Removing Fire Extinguisher
    G09827259Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove fire extinguisher -2-  from the tray -3-  (-arrow B-  ).
