Installing Tray For Fire Extinguisher

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only for vehicles with air-conditioned comfort seat.

Make sure that the wire harness for the fan is not trapped or damaged.

Install fire extinguisher holder.

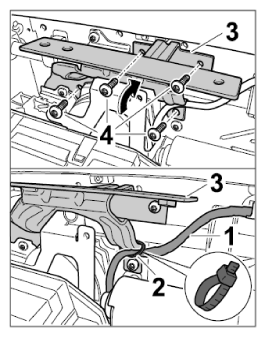

Fig 1: Installing Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Position fire extinguisher holder -3- (-arrow- ).
2. 1.2. Coat fastening screws -4- with Loctite 243 and tighten them. → Tightening torque: 10 Nm (7.5 ftlb.)
3. 1.3. Secure wire harness for control panel -1- with the tie-wrap -2- on the fire extinguisher holder -3- .
Assemble the tray.

Fig 2: Securing Wire Harness For Control Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

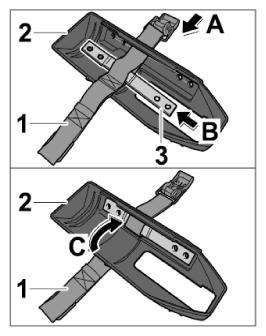

1. 2.1. Pull restraining strap -1- through the upper opening in the tray -2- (-arrow A- ).
2. 2.2. Slide tray holder -3- through into the restraining strap -1- (-arrow B- ).
3. 2.3. Slide restraining strap -1- through the lower opening in the tray -2- (-arrow C- ).

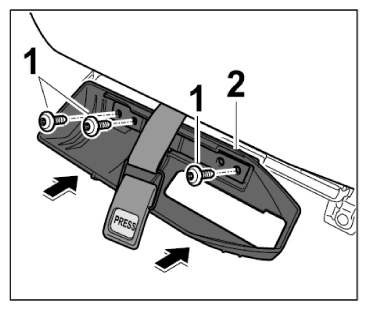

Position tray -2- (-arrows- ) and secure with the fastening screws -1- . → Tightening torque: 10 Nm (7.5 ftlb.)

Fig 3: Installing Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
