Installing Lid For Tray: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit hinge.
1. 1.1. Engage spring -3- .
2. 1.2. Position hinge -2- , push axle -1- through hinge and spring -3- .

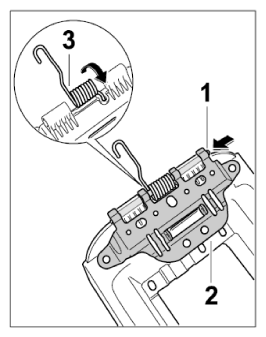

  Fig 1: Fitting Hinge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lid for inner tray.
1. 2.1. Position lid for inner tray -4- and close it.
2. 2.2. Push belt strap and retaining pin -3- through -Arrow A- , and push retaining pin -2- through hinge and belt strap -Arrow B- .
3. 2.3. Position spring and secure lid for inner tray -4- with the fastening screws -1- .

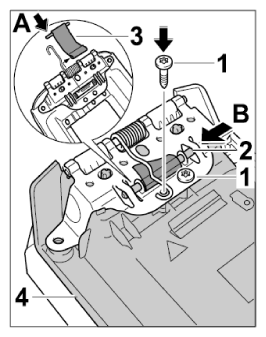

  Fig 2: Installing Lid For Inner Tray
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lid for outer tray.
1. 3.1. Open lid for inner tray.
2. 3.2. Position lid for outer tray -2- and secure with the fastening screws -1- .

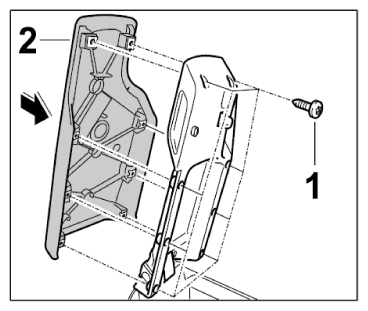

  Fig 3: Installing Lid For Outer Tray
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
