Removing Tunnel Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

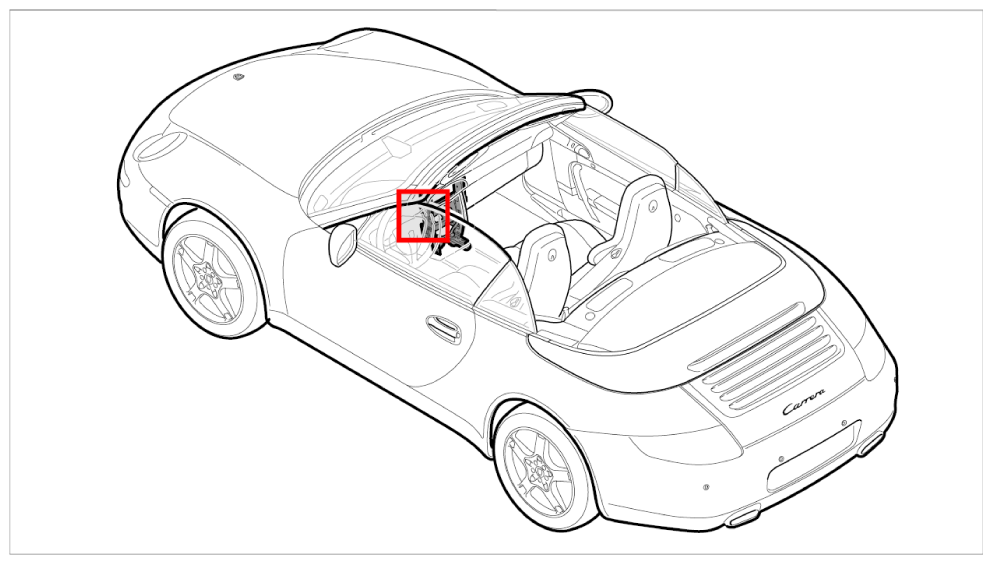

Fig 1: Identifying Tunnel Support Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

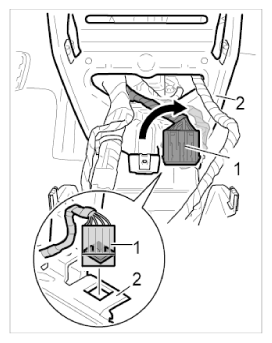

Unscrew plug connection for center console -1- in -direction of arrow- from the tunnel support -2- .

Fig 2: Removing Plug Connection For Center Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

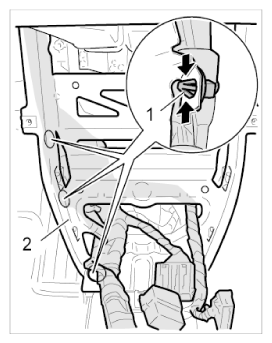

Unclip tie-wrap for wire harness -1- at the tunnel support -2- by pressing the locking lugs -arrows- together.

Fig 3: Loosening Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

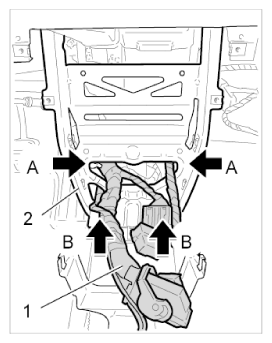

Disengage wire harness -1- at the tunnel support -2- (holder) -arrows A- and slide through towards the rear -arrows B- .

Fig 4: Disengaging Wire Harnesses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

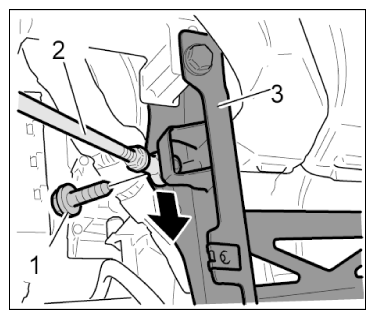

Unscrew fastening screw -1- and remove strut -2- by pulling it down out of the tunnel support -3- (-arrow- ).

Fig 5: Removing Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

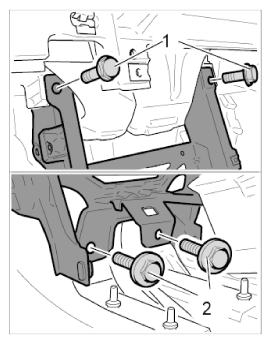

Unscrew fastening screws at the top -1- and bottom -2- of the tunnel support.

Fig 6: Loosening Tunnel Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

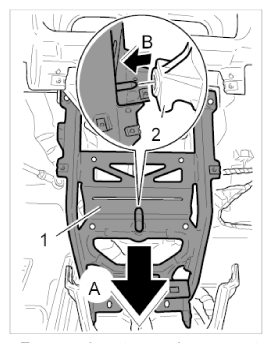

Press tunnel support -1- down slightly -arrow A- and remove it from the guide on the air conditioning unit -2- (-arrow B- ).

Fig 7: Removing Tunnel Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

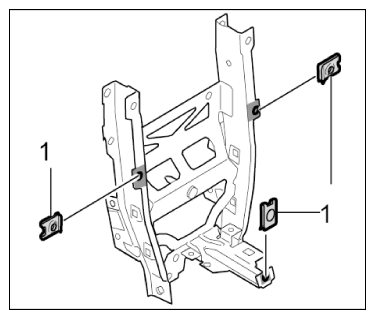

Check fastening nuts -1- and replace them if necessary.

Fig 8: Checking Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
