Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove triggering unit for airbag. → 695319 REMOVING AND INSTALLING TRIGGERING UNIT FOR AIRBAG
  2. Remove glove box. → 681519 REMOVING AND INSTALLING GLOVE COMPARTMENT
  3. Remove PCM display and operator control unit. → 911019 REMOVING AND INSTALLING PCM DISPLAY AND CONTROL UNIT
  4. Remove air-conditioning system regulator. → 870219 REMOVING AND INSTALLING AIR CONDITIONING CONTROL
  5. Remove switch console. → 962719 REMOVING AND INSTALLING SWITCH CONSOLE
  6. Remove trim panel under dashboard on the driver's side. → 701919 REMOVING AND INSTALLING TRIM UNDER DASHBOARD
  7. Unscrew fastening screws -1-  .

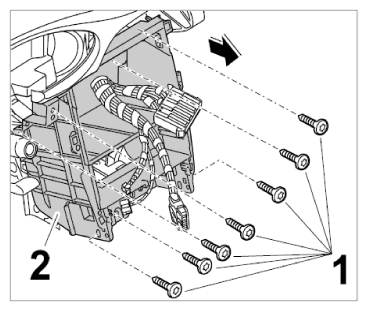

    Fig 1: Removing Unit Carrier
    G09827226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Unclip electrical lead in vehicles with a telephone handset.
  8. Pull unit carrier -2-  towards the rear.
