Installing Tunnel Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

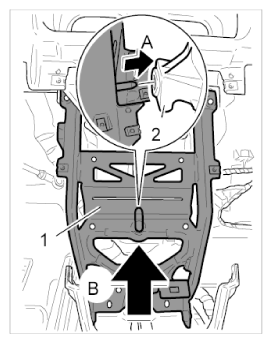

Position tunnel support -1- into the guide on the air conditioning unit -2- (-arrow A- ) and guide it upwards at the same time -arrow B- .

Fig 1: Installing Tunnel Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

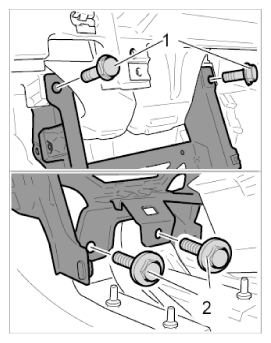

Screw in fastening screws at the top -1- and bottom -2- of the tunnel support. → Tightening torque: 23 Nm (17 ftlb.) → Tightening torque: 9.7 Nm (7.5 ftlb.)

Fig 2: Loosening Tunnel Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

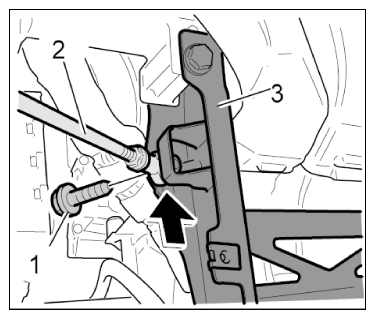

Guide strut -2- up into the tunnel support -3- (-arrow- ) and secure with the fastening screw -1- . → Tightening torque: 9.7 Nm (7.5 ftlb.)

Fig 3: Securing Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

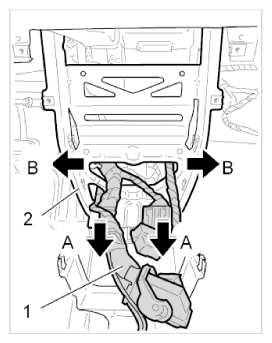

Pull wire harnesses -1- through the tunnel support -2- (-arrows A- ) and engage at the tunnel support (holder) -2- (-arrows B- ).

Fig 4: Engaging Wire Harnesses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

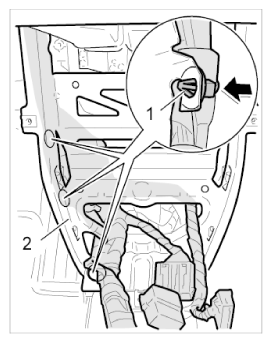

Clip in tie-wrap for wire harness -1- at the tunnel support -2- (-arrow- ).

Fig 5: Securing Wire Harnesses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

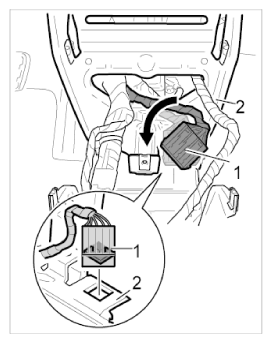

Position plug connection for center console -1- at the tunnel support -2- and secure it by turning in -direction of arrow- .

Fig 6: Securing Plug Connection For Center Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
