Installing CD Holder

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

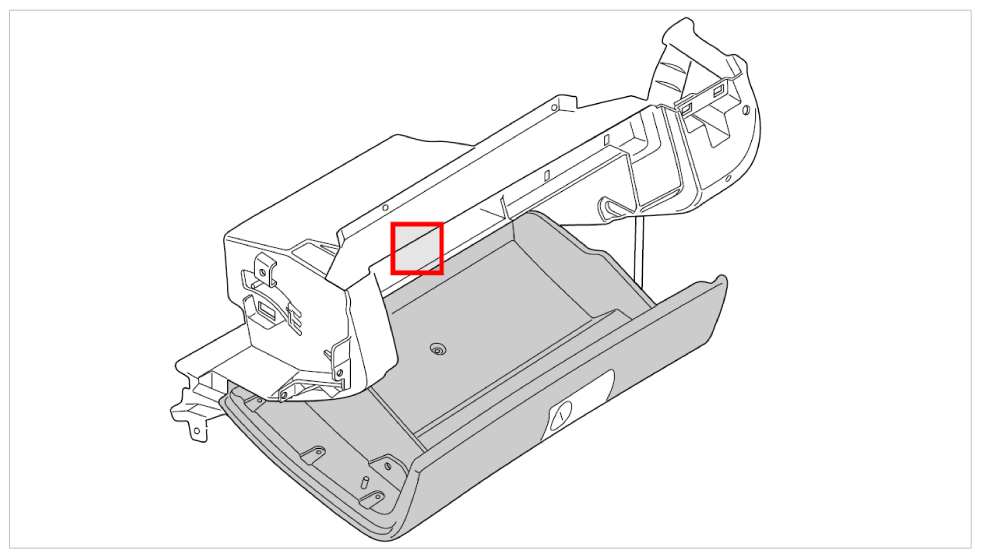

Fig 1: Identifying CD Holder Installation Position
G09827216Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position CD holder -2-  at glove compartment -3-  and secure using the fastening screws -1-  .

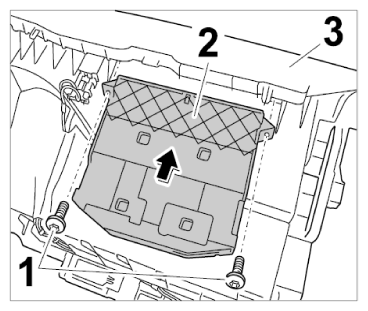

    Fig 2: Installing CD Holder
    G09827217Courtesy of PORSCHE CARS NORTH AMERICA, INC.
