Removing Flap

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The flap can be replaced when the vehicle's cup holder is installed or removed.

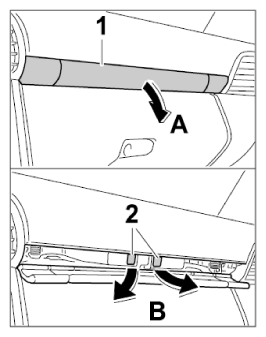

Open cover -1- in -direction of arrow A- .
Open linkage lever -2- in -direction of arrow B- .
Information

Make sure that the torsion spring -3- does not jump out of place.

Fig 1: Opening Cover/Linkage Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

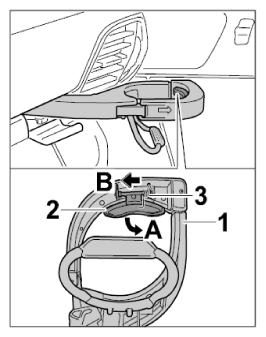

Insert a screwdriver between the linkage lever -1- and flap -2- , unclip it in -direction of arrow A- and remove it from the linkage lever -arrow B- .

Fig 2: Removing Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
