Installing Flap

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

To fit the flap correctly, the torsion spring -3- must be hooked in prior to installation.

Position flap -2- on the linkage lever -1- (-arrow A- ) and press it in -direction of arrow B- until it locks with an audible click.

Fig 1: Installing Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
By carefully folding over the flap - 2- , check that the torsion spring -3- is secured correctly.
Close linkage lever -2- until it engages securely -arrows A- .

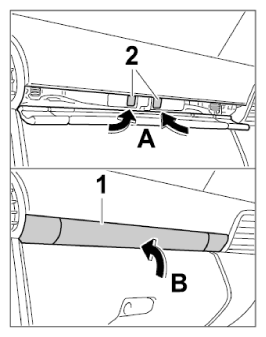

Fig 2: Closing Linkage Lever/Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close cover -1- until it engages securely -arrow B- .
