Removing Bulb And Contact Clips

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove bulb -5-  from contact clips -4-  . Take the contact clips upwards out of the holder.

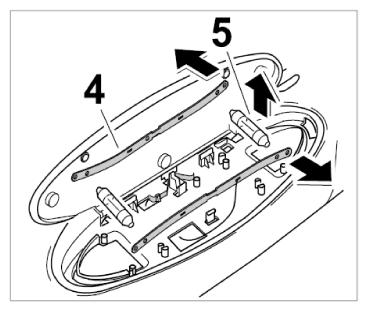

    Fig 1: Removing Bulb And Contact Clips
    G09827192Courtesy of PORSCHE CARS NORTH AMERICA, INC.
