Removing Sun Visor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

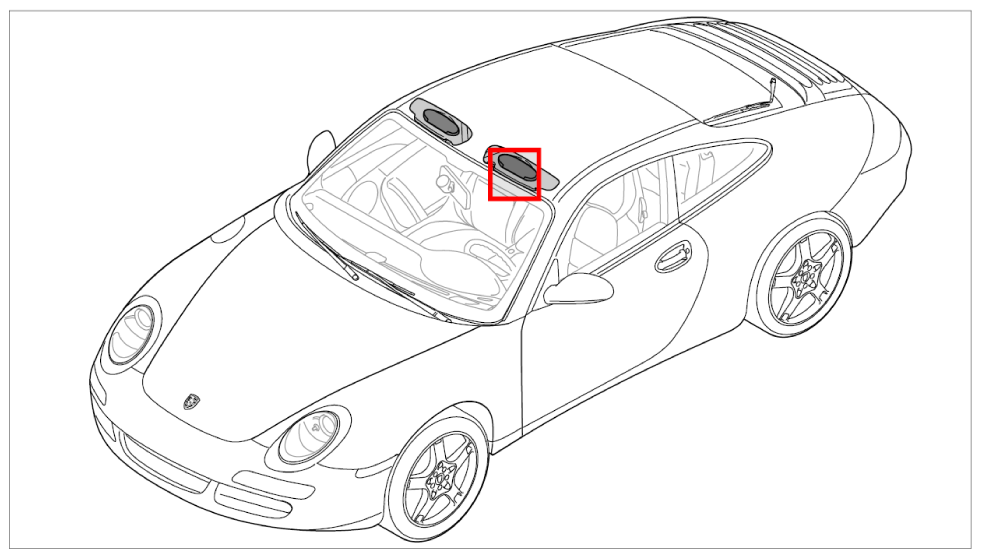

Fig 1: Identifying Sun Visor Installation Position
G09827187Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip cover -1-  on pivot bearing -arrow A-  .

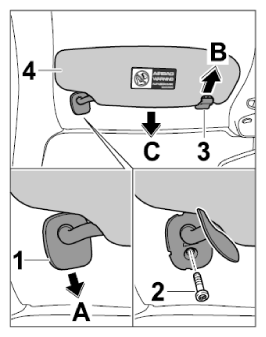

    Fig 2: Removing Sun Visor
    G09827188Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -2-  .
  3. Pull the sun visor -4-  out of the mounting saddle -3-  (-arrow B-  ) and remove it in a downward direction -arrow C-  .
