Installing Sun Visor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert the sun visor -4- together with the pivot bearing into the roof frame -arrow A- and press it into the mounting saddle -3- (-arrow B- ).

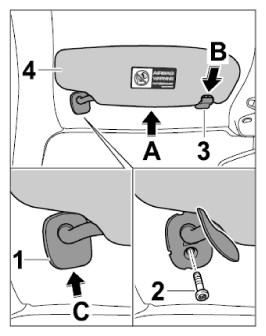

Fig 1: Installing Sun Visor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the pivot bearing for the sun visor -4- with the fastening screw -2- . → Tightening torque: 5 Nm (3.5 ftlb.) +0.5 Nm (+0.5 ftlb.)
Position cover -1- on the pivot bearing and clip it in -arrow C- .
