Removing Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

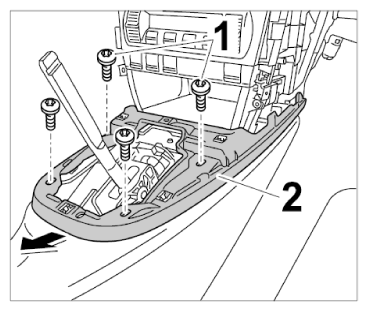

  1. Loosen the fastening screws -1-  and lift the frame -2-  up and off -arrow-  .
    Fig 1: Removing Frame
    G09827181Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check fastening clamp and replace if necessary.
