Installing Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Guide front cover -2-  into the guide at the left and right -inset-  .

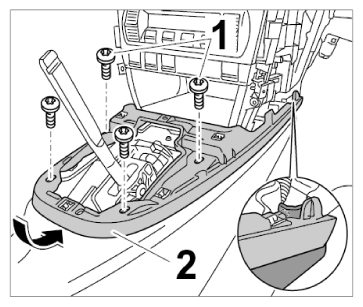

    Fig 1: Installing Frame
    G09827182Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tighten fastening screws -1-  . → Tightening torque:: 1.8 Nm (1.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
